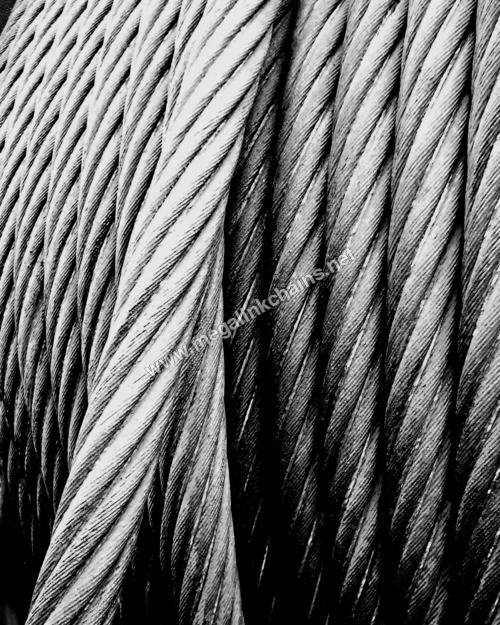

Steel Wire Rope

Steel Wire Rope
Steel Wire Rope
Product Code : 1456
Product Description

Under the assistance of our team of professionals, we are engaged in offering an assorted range of Steel Wire Rope such as Engineering Wire Ropes and Galvanized Fishing Wire Ropes. The provided rope is used for handling and lifting heavy loads on trucks and ships in construction and engineering sector. Highly appreciated for its smooth texture, this rope is precisely manufactured by utilizing the best quality steel and contemporary techniques under the stern vigilance of our technocrats in sync with set industrial norms. In order to fulfill the varied needs of our clients, we provide this Steel Wire Rope in numerous colors, finishes and grades at affordable prices.

Features:

  • Optimum abrasion and improved durability
  • Capable to withstand even on extreme weather conditions
  • Available in various finishes, lengths and colors
  • High stiffness and strength even at very low temperature
  • Absorbs less water and therefore highly suitable for marine applications
  • Durable and posses high tensile strength
  • Nontoxic and recyclable
  • Remain in shape even after repeated stretching or bending

Technical Specifications

Best patent steel wire

125 kg/mm2 (1230 N/mm2)

Extra improved patent steel wire

145 kg/mm2 (1420 N/mm2)

Best plough steel wire

160 kg/mm2 (1570 N/mm2)

Extra improved plow steel wire

180 kg/mm2 (1770 N/mm2)

Extra Extra improved plow steel wire

200 kg/mm2 (1960 N/mm2)

Holding Capacity Of The Heels

The rope capacity L(m), of a reel, in any size and length may be calculated by the following formula:

Where:


L - rope capacity of reel (ml.
A - depth of rope layer (mm), = H – B/2
B - diameter of reel barral (mm)
C - width between reel flanges (mm),
d2 - rope diameter (mm),
H - diameter of the drum (mm) as measured over the outermost layer filling the drum.

This formula is based on assumption of uniform rope winding and will not give correct result if rope is not wound uniformly in a reel.

Ratio of Drum and Sheave Diameter to Rope Diameter

Purpose

Construction

Approximate Minimum Ration

Mining installation

Winder

100

Haulage
up to but excluding 50 KN
100 KN and above

50

60

Cranes an allied hoisting equipment

6 x 37
8 x 19
8 x 19

17

8 x 19 Seale
34 x 7 Non-rotating

18

6 x 19 Filer Wire
6 x 19

20

17 x 7 Non-rotating
18 x 7 Non rotating

23


Rope Application

Factor of Safety

Mining Ropes

Not less than

a) For shafts of varying depths


Up to 3000m

10

300 to 500mm

9

500 to 700 mm

8

700 to 1000m

7

1000 to 1500m

6

Over 1500 m

5

b) Haulages

7

Wire ropes used on the cranes and other hoisting equipment


Fixed guys


Unreeved rope bridles of lib cranes or anciliary applications, such as lifting beams.

4.0

Ropes which are straight between terminal fittings Hoisting, luffing and reeved bridle systems of inherently flexible cranes (for example, mobile) crawler, tower,  stiff leg where equivalent shock absorbing devices are incorporated in lib supports

4.5


5.0

Cranes and hoists in general hoist blocks

Please refer the relevant standards

Aerial ropeways

6.0

Slings
